Tire changer S-T568 Italian pump optional;Clochwise and anticlockwise rotation of chuck; Self-Centering chuck rim capacity 14"-26"

Product Details

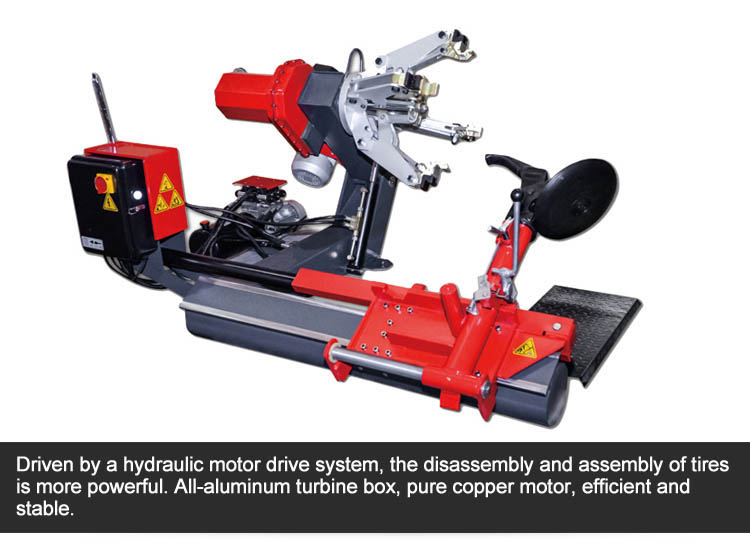

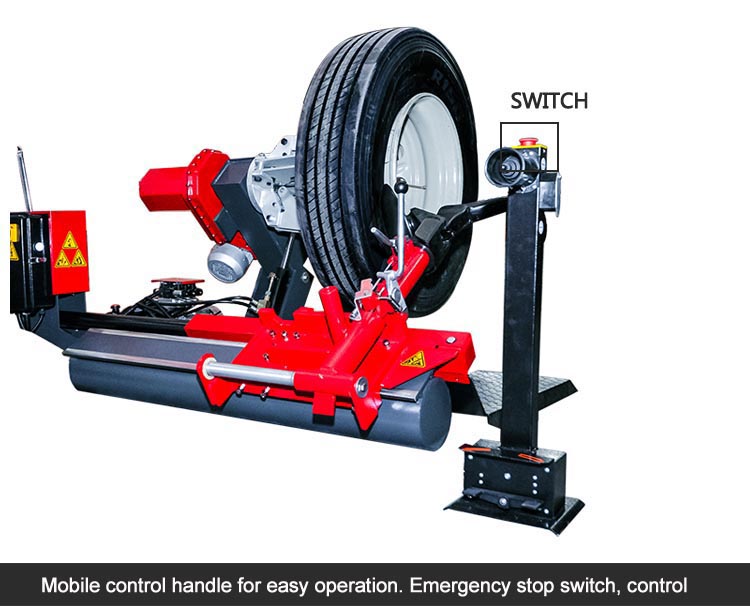

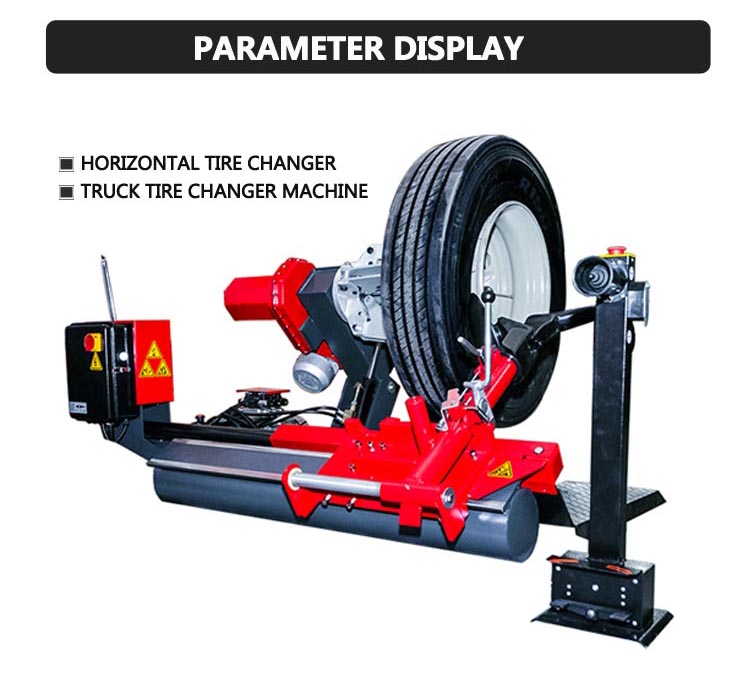

Truck Tire changer S-T568

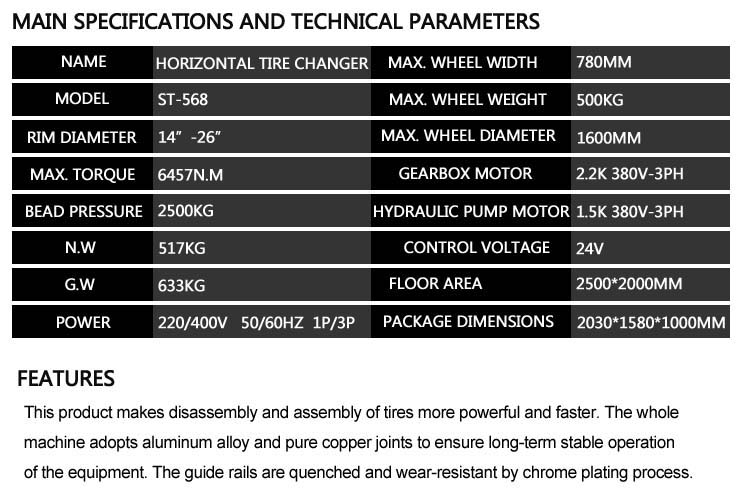

TECHNICAL DATA

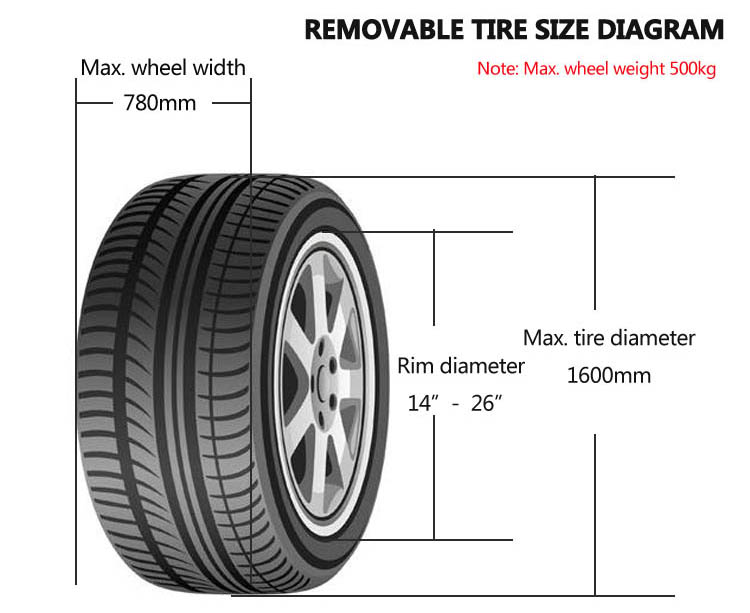

Rim Diamter 14" - 26"
Max.wheel weight 500kg
Max Wheel Width 780mm
Max Tyre Diameter 1600mm
Hydraulic Pump Motor 1.5KW 380V - 3PH(220V Optional)
Gearbox Motor 2.2KW 380V - 3PH(220V Optional)
Bead Breaker Force 2500kg
Max.Torque 6457N.m
Operation Control Voltage 24V
Machine Weight Approx 517kg
Overall Dimensions Approx 2500×2000mm
Power 220/400V  50/60HZ 1P/3P Optional

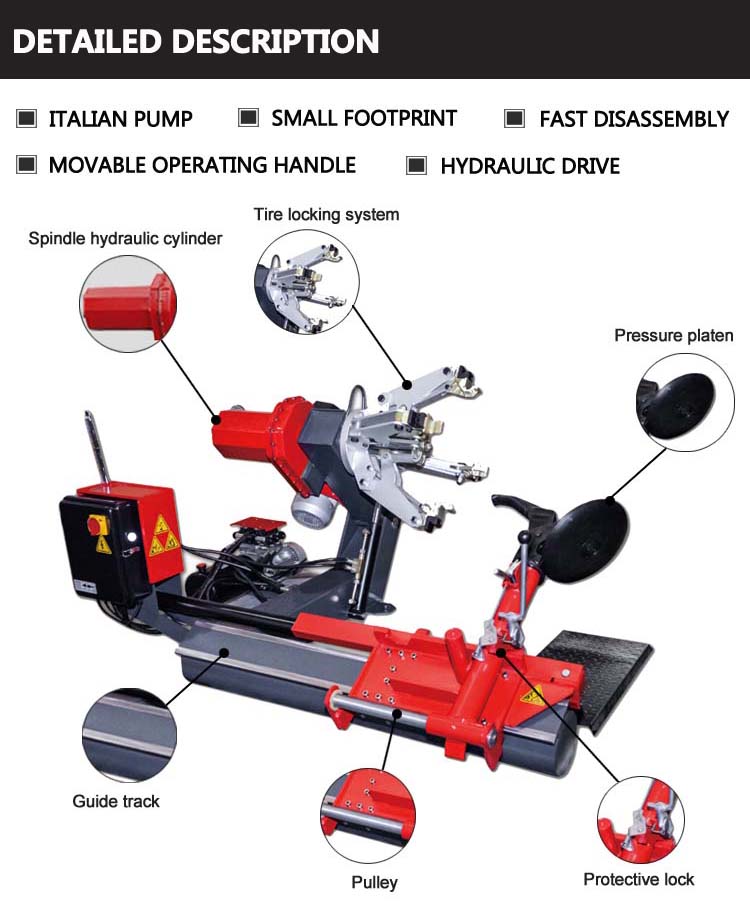

PRODUCTS INTRODUCTION
· Semi-Auyomatic truck tyre changer t568 universal

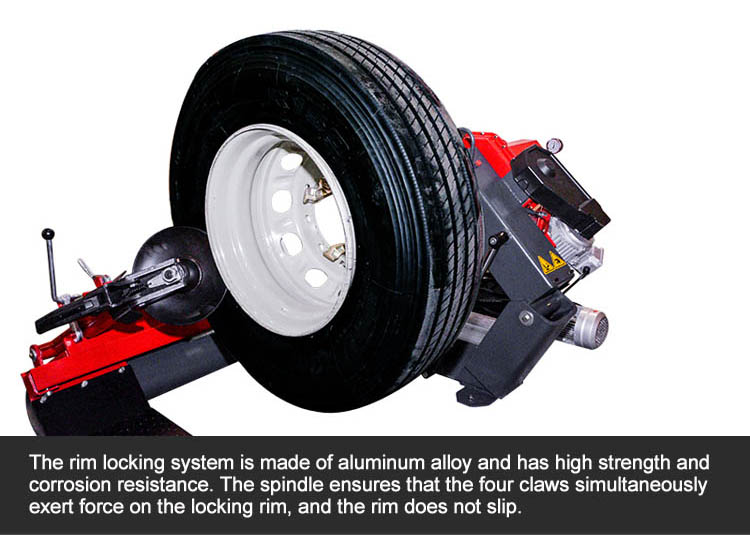

· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional

WEIGHT&DIMENSIONS
Model:Truck Tire changerS-T568
Gross Egight(kg):633

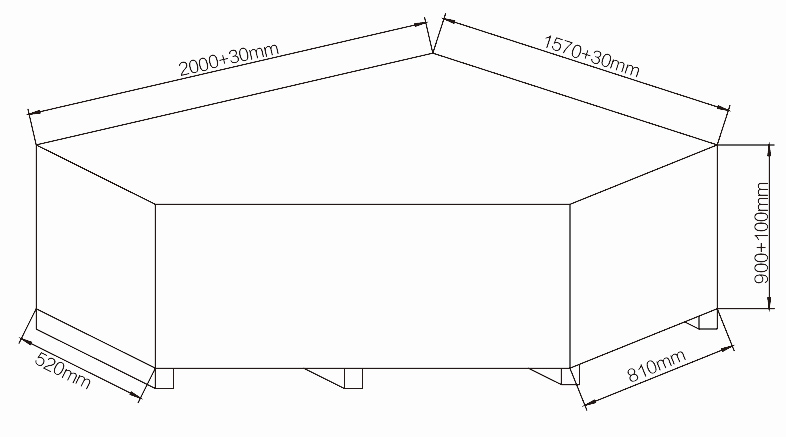

Outside Dimension L×W×H(mm):2030×1580×1000
