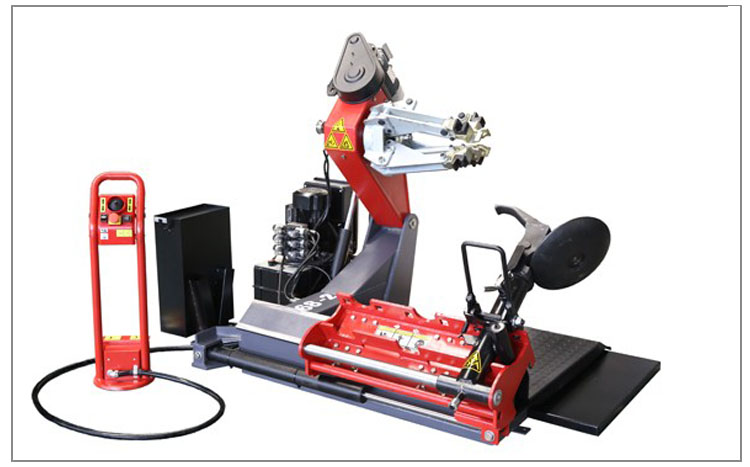

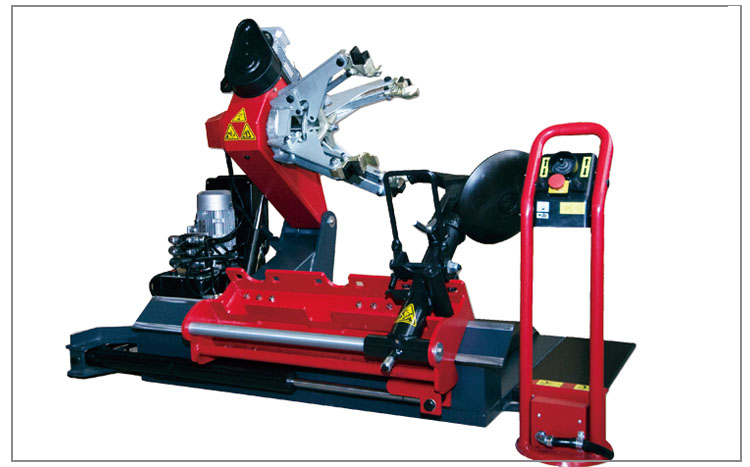

The S-T568-2 truck tire changer machine is a professional semi-automatic tire mounting and demounting machine designed for servicing heavy-duty vehicle wheels. It is widely used in truck repair workshops, fleet maintenance centers, and tire service stations.
With a rim clamping capacity of 14″ to 26″, the S-T568-2 can handle a wide range of commercial vehicle wheels including trucks, buses, agricultural machinery, and industrial vehicles. The machine is equipped with a powerful hydraulic system and double-speed rotation motor, allowing technicians to remove and install large tires safely and efficiently.
The electro-hydraulic operating system provides strong bead-breaking force and stable clamping performance, making it ideal for demanding workshop environments where reliability and efficiency are critical.
Compared with manual tire removal tools, the S-T568-2 greatly reduces labor intensity and improves operational efficiency in professional tire service operations.
TECHNICAL DATA
| Rim Diamter | 14" - 26" |
| Max.wheel weight | 500kg |
| Max Wheel Width | 780mm |
| Max Tyre Diameter | 1600mm |
| Hydraulic Pump Motor | 1.5KW 380V - 3PH（220V Optional） |
| Gearbox Motor | 2.2KW 380V - 3PH（220V Optional） |
| Bead Breaker Force | 2500kg |
| Operation Control Voltage | 24V |
| Machine Weight Approx | 588kg |
| Overall Dimensions Approx | 2500 × 2000mm |
| Power | 220/400V 50/60HZ 1P/3P Optional |
PRODUCTION INTRODUCTION
·Double speed for rotation motor
· Import hydraulic pump
· Alu protection kit as standard accessory
· Small floor area
WEIGHT&DIMENSIONS
Model：Truck Tire changer T568-2Gross Weight（kg）：650
Outside Dimension L×W×H（mm）：1830×1480×1080
Key Features of S-T568-2 Truck Tire Changer
Heavy-Duty Hydraulic System
The machine uses a high-performance hydraulic pump to deliver stable torque and strong clamping force during tire mounting and demounting.
Wide Rim Compatibility
The S-T568-2 supports rims from 14″ to 26″, making it suitable for many commercial vehicle tire sizes
Powerful Bead Breaking Force
With a bead breaker force of 2500 kg, the machine can easily separate stubborn tire beads from the rim, even on heavy truck tires.
Double-Speed Rotation Motor
The machine features two rotation speeds for better control and improved efficiency during tire mounting operations.Durable Industrial Structure
Constructed with reinforced steel components, the S-T568-2 ensures long-term durability and stable operation in heavy-duty tire service environments.
Aluminum Rim Protection Kit
The standard aluminum protection kit helps prevent damage to alloy rims during tire removal and installation.
Compact Footprint
Despite its strong performance, the machine occupies a relatively small floor area, making it suitable for workshops with limited space.
Applications
The S-T568-2 truck tire changer is designed for professional tire service environments such as:
- Truck tire repair shops
- Bus maintenance workshops
- Fleet maintenance facilities
- Agricultural machinery service centers
- Construction vehicle repair workshops
- Logistics company maintenance garages
These facilities often need to handle large and heavy wheels, and the S-T568-2 provides the necessary hydraulic power and stability required for efficient tire servicing.
Advantages of Using S-T568-2 Tire Changer
Improve Workshop Efficiency
Using a professional truck tire changer significantly reduces the time required to remove and install heavy vehicle tires.
Reduce Labor Intensity
Manual tire removal for truck wheels can be extremely demanding. The hydraulic system helps reduce physical effort for technicians.
Safe and Stable Operation
The machine features secure clamping and controlled rotation, ensuring safe handling of large wheels.
Compatible with Multiple Tire Types
The S-T568-2 is suitable for:
- Truck tires
- Bus tires
- Agricultural vehicle tires
- Industrial vehicle tires
Reliable Performance
The combination of hydraulic power and mechanical precision ensures consistent performance in busy workshops.
How the Truck Tire Changer Works
A truck tire changer is designed to simplify the process of mounting and demounting large vehicle tires.
The typical tire service process includes:
- Wheel Positioning
The wheel is placed onto the machine and securely clamped using the hydraulic chuck. - Bead Breaking
The bead breaker applies pressure to separate the tire bead from the rim. - Tire Demounting
The tire is removed from the rim using the rotating chuck and mounting tools. - Tire Mounting
The new tire is positioned and mounted onto the rim. - Inspection and Inflation
The technician checks the installation and inflates the tire to the correct pressure.
This automated process greatly improves efficiency compared with traditional manual tire removal.
Why Choose Our Truck Tire Changer
Choosing the right tire changing equipment is critical for any professional tire service workshop.
Our S-T568-2 tire changer offers several advantages:
- High-quality manufacturing standards
- Stable hydraulic performance
- Durable industrial design
- Easy operation for technicians
- Competitive factory pricing
- OEM and customization available
As a professional manufacturer of tire service equipment, we provide reliable solutions for distributors, wholesalers, and workshop owners worldwide.
Standard Accessories
The S-T568-2 tire changer typically includes the following accessories:
- Tire mounting lever
- Bead holding clip
- Aluminum rim protector kit
- Tire mounting paste
- Grease gun
- Tool tray
These accessories help technicians perform tire service tasks efficiently and safely.
FAQ – Truck Tire Changer S-T568-2
What vehicles can the S-T568-2 tire changer service?
The machine is suitable for trucks, buses, agricultural vehicles, and other commercial vehicles with rim sizes between 14″ and 26″.
What is the maximum wheel weight the machine can handle?
The S-T568-2 supports wheels weighing up to 500 kg, making it suitable for medium-to-large commercial vehicle wheels.
What power supply does the machine require?
The machine supports 220V or 380V power supply depending on configuration and customer requirements.
Is the machine suitable for alloy wheels?
Yes. The machine includes an aluminum protection kit to prevent damage to alloy rims during tire installation.
Is operator training required?
Basic training is recommended to ensure safe and efficient operation, but the machine is designed to be easy to use for professional technicians.
