Tire Changer For Car
Product Details

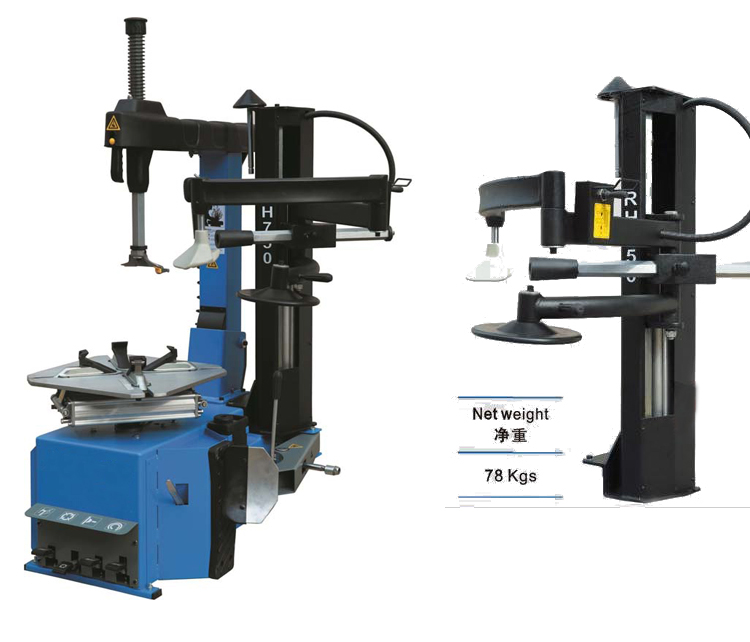

Tire changer machine S-T885H

Tire changer machine S-T885H

Tire changer machine S-T885H

Power supply voltage: 220 v / 50 ~ 60 hz
380 v / 50 hz
Power: 1.1 Kw
The pressure of work: 8 ~ 10 bar
Rim diameter: 26 "/ 1100 mm
Rim width: 16 "/ 410 mm
Net weight: 308 kg
Gross weight: 343 kg
Tire changer machine S-T885H

Tire changer machine S-T885H

1. The pneumatic control pillar backward, automatic positioning, pneumatic locking function
2. The right arm system, increase the coverage, pneumatic control manipulator can be freely positioning lock in any position
3. The pneumatic tire drag can balance lift at any position, make the disassembling tyres more convenient save Labour
4. Precision processing and manufacturing of reducer, special alloy imported the mounting head and jaw, make the equipment more durable
5. The cylinder bore is Φ 75 small, hard oxidation, high quality parts, chrome plated piston rod, make its little resistance during operation, the clamping force is stronger
6. The big cylinder adopts aluminum cylinder, put an end to happen the cylinder wall rust phenomenon, to ensure that the service life of large cylinder
