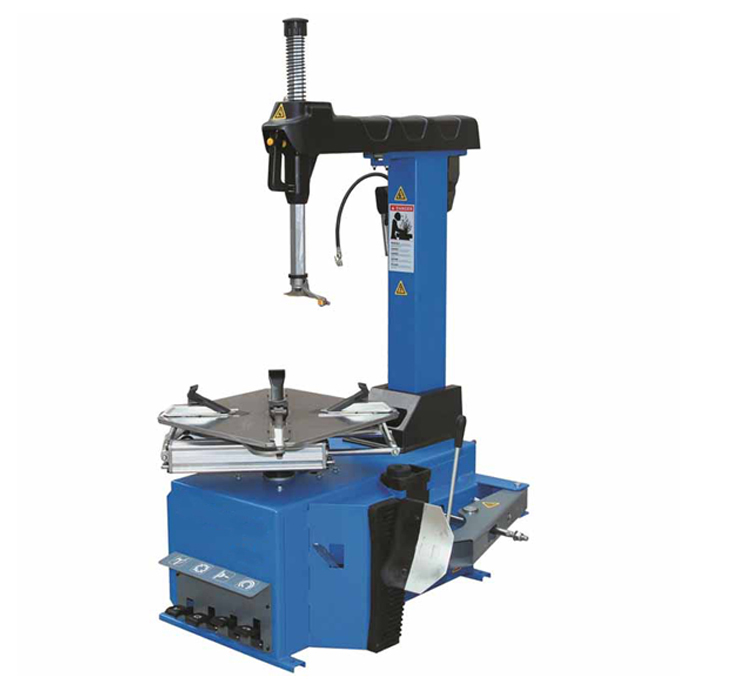

Tire changer machine S-T886

Tire changer machine S-T886

Power supply voltage: 220 v / 50 ~ 60 hz
380 v / 50 hz.
Power: 1.1 Kw
The pressure of work: 8 ~ 10 bar
Rim diameter: 26 "/ 1100 mm
Rim width: 16 "/ 410 mm
Net weight: 270 kg
Gross weight: 310 kg

Tire changer machine S-T886

1. Increased, thickening square pillar, pneumatic control pillar of forward and backward
2. The column beam six square steel, high strength 60 mm make equipment more stable when disassembling all kinds of tires, and durable
3. Automatic adjustment and double lock the mounting head device, ensure that the mounting head and rim reasonable clearance
4. Professional design, for disassembling the flat tires and tire explosion-proof (PAX) provides a more efficient service, the largest disassembling tyres sizes up to 26 inches
5. Set aside with chiral auxiliary installation holes, equipped with auxiliary hand ready for future upgrade
6. The big cylinder adopts aluminum cylinder, put an end to happen the cylinder wall rust phenomenon, to ensure that the service life of large cylinder
