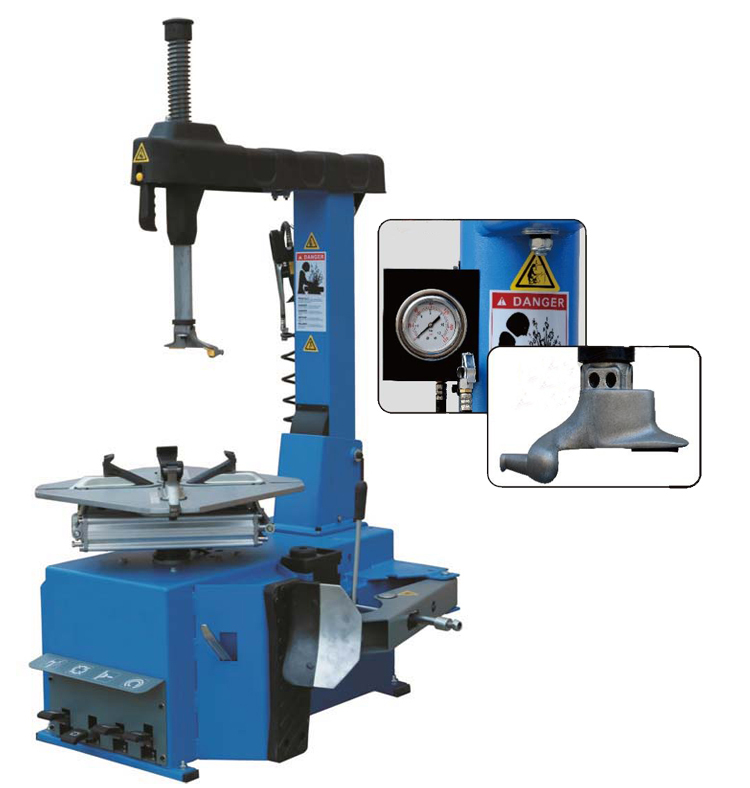

Tire changer machine S-T885

Tire changer machine S-T885

Power supply voltage: 220 v / 50 ~ 60 hz
380 v / 50 hz
Power: 1.1 Kw
The pressure of work: 8 ~ 10 bar
Rim diameter: 26 "/ 1100 mm
Rim width: 16 "/ 410 mm
Net weight: 230 kg
Gross weight: 256 kg

Tire changer machine S-T885

1.24 ' increase the plate applies to tear open change bigger, more wide tires
2. The whole machine widening and thickening, reduce the height, machine the overall center of gravity down, make the operation more easy and convenient
3. The pneumatic control pillar backward, automatic positioning, pneumatic locking function
4. Set aside with chiral auxiliary installation holes, equipped with auxiliary hand ready for future upgrade
5. Optional right chiral auxiliary RH750, economical and convenient operation
6. The big cylinder adopts aluminum cylinder, put an end to happen the cylinder wall rust phenomenon, to ensure that the service life of large cylinder
7. By 40 a silver contact switch, load when the motor running more stable
