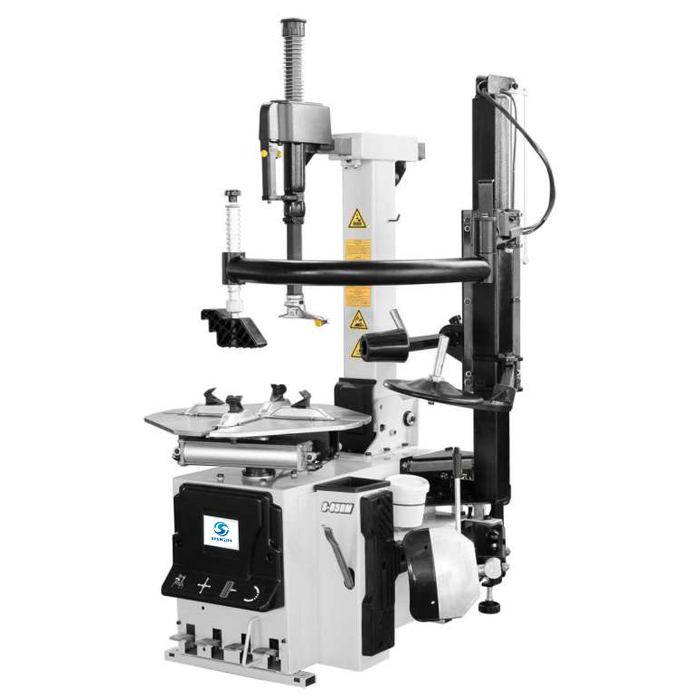

Tire Changer S-T850M for Car
Tire Changer S-T850M for Car parameter
| Specification data | Specification data |
| rim clamping from outside | 10”-22” |
| rim clamping from inside | 12”24” |
| Max tyre diameter | 1000mm/39.5” |
| Max tyre width | 380mm/14.5” |
| operation voltage | 8-10bar |
| inflation Max pressure | 3.5bar |

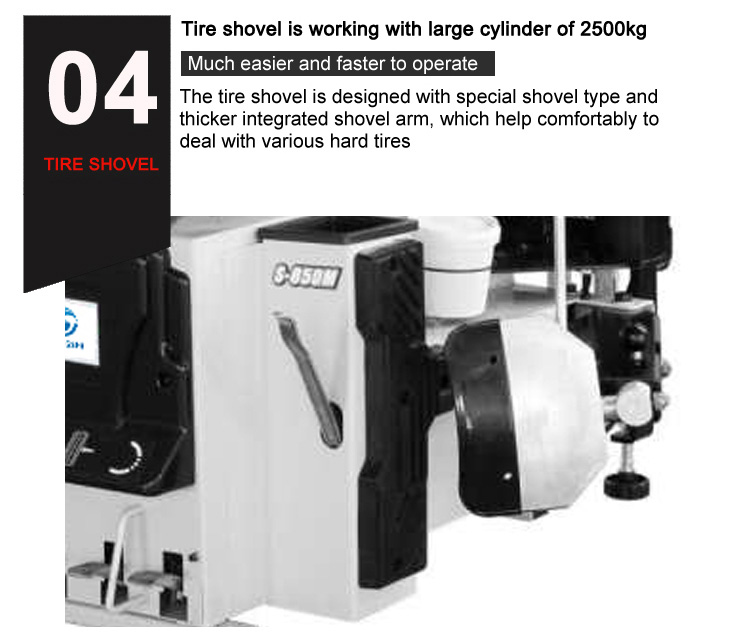

| bead breaker force | 2500kg |
| power supply | 220v/380v |
| Motor Power | 1.1kw/0.75kw |
| equipment weight | 260kg/360kg |
| packing | 760*975*950/1200*900*1700 |
Full-laser cutting;

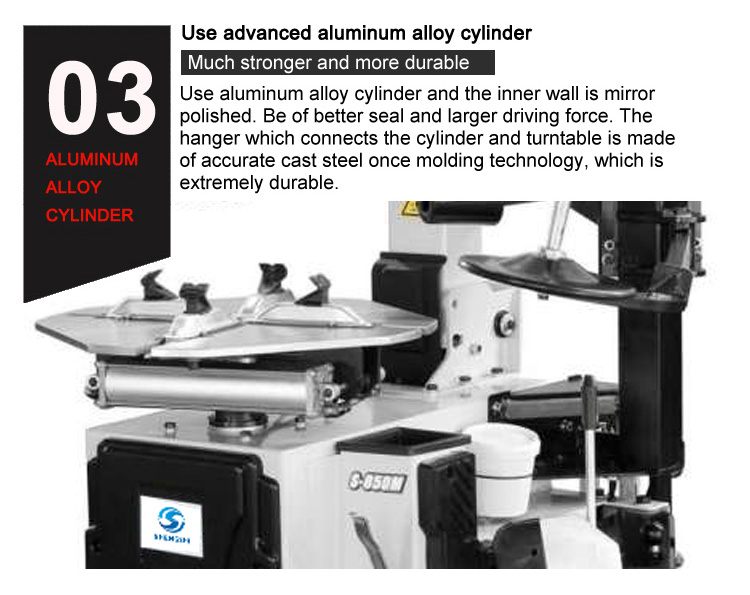

All-aluminum large cylinder;

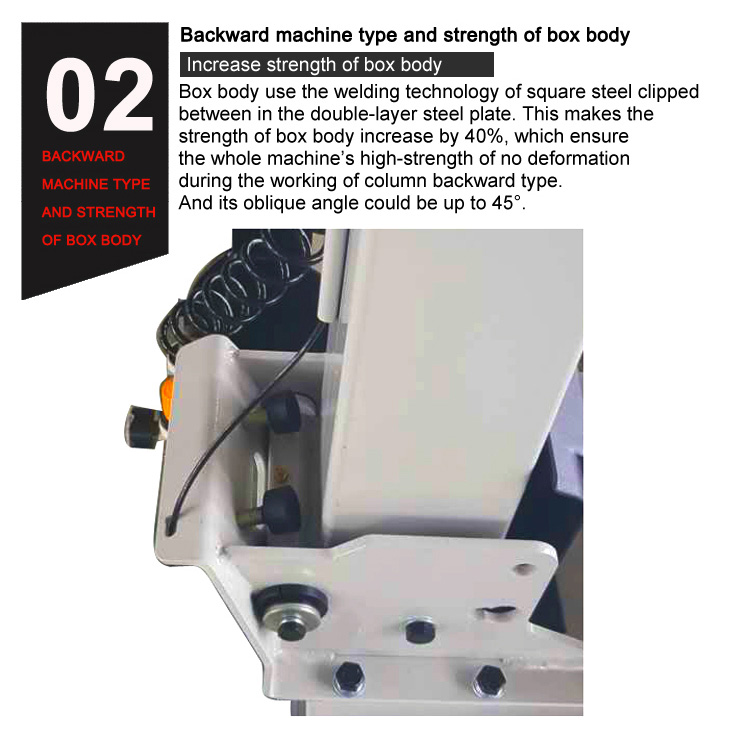

Double-layer pull bars inside the box body;
All-aluminum explosion-priif oil and water separator
Largearm once molding and drawer type all-aluninum pedal assembly
Tire changer 850M Advantage
1.Trigeminal aluminum pedals have self-centering device function, in order to mount and demount the tyre more accurate & save time ;

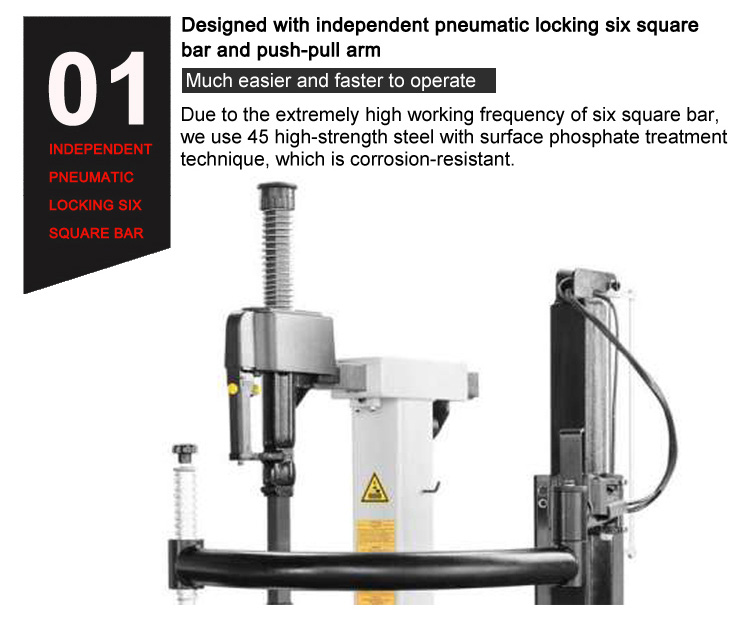

2.Hexagonal shaft is made of #745 cold-rolled steel(CRS), the mounting head made by German military solid steel standard ; 3.Right back lengthened bold type auxiliary arm system , increasing the coverage of the work, pneumatic control robotic arm can lifte and position anywhere;
4.Pneumatic control left bracket equipment,pneumatic left tire equipment, lifting smoothly in any position to make disassembly tire more easy;
5.Rotary fetal seat in combination with 24 '' large disk and high-power motor is suitable for larger, wider, explosion-proof high-grade tires.
Tire changer 850M
Tire changer 850M One better use and durable tire demount and mount machine must be made of thick material with reasonable and scientific design. The angles and gaps among each component must be strictly controlled. High use frequency and using enhanced type of components that need withstand high strength are to ensure low failure rate and make you use in peace of mind.
