Wheel Alignment Machine Price S-TV3D-HL
Rim size: 10”-22”
Power requirement：200-240V 1PH,50/60Hz
| Wheel Alignment Machine Price S-TV3D-HL | ||
| Measuring Item | Measuring Accuracy | Measuring Range |
| Rim Diameter | 10"-22" | |
| Power Valtage | 200-240V 1Ph, 50/60Hz | |
| Display Accuracy | 1"/0.01°/0.1mm | |
| Camber | +_2" | +_10° |
| Caster | +_6" | +_20° |
| King-pin | +_6" | +_20° |
| Wheel Toe | +_2" | +_20° |
| Set Back | +_2" | +_5° |
| Thrust Angle | +_2" | +_5° |
| Track Width | +_2mm | 1800mm |
| Wheel Base | +_2mm | 3500mm |
| Post Height | 1350mm-2200mm | |

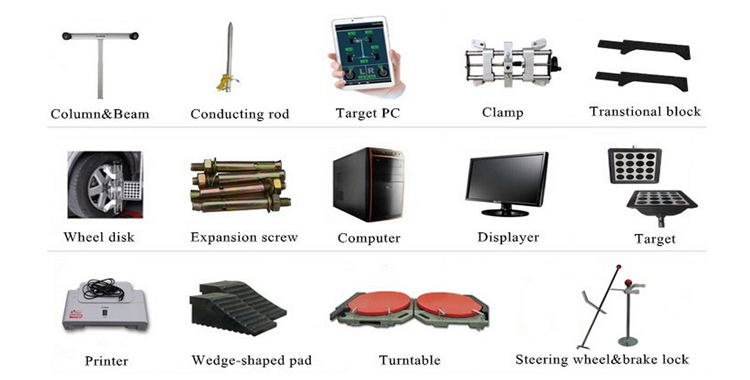

| Accessories | Cabinet: 1PCS
Computer Host: 1PCS Computer Display: 1PCS Printer: 1PCS(Option) Mouse/Keyboard: 1Set Pillar: 1PCS Camera Beam: 1PCS Target: 4PCS/Set Pad: 1PCS(Option) Eccentric Screw & Conduction Rod: 1Set Transitional Block: 2PCS/Set Clamp: 4PCS/Set Turntable: 2PCS/Set Hanger: 4PCS/Set Steering Wheel& Brake Lock: 1Set Wedge-Shape Pad: 2PCS/Set Camera: 2PCS/Set Manual: 1PCS Stabilizer: 1PCS |
|

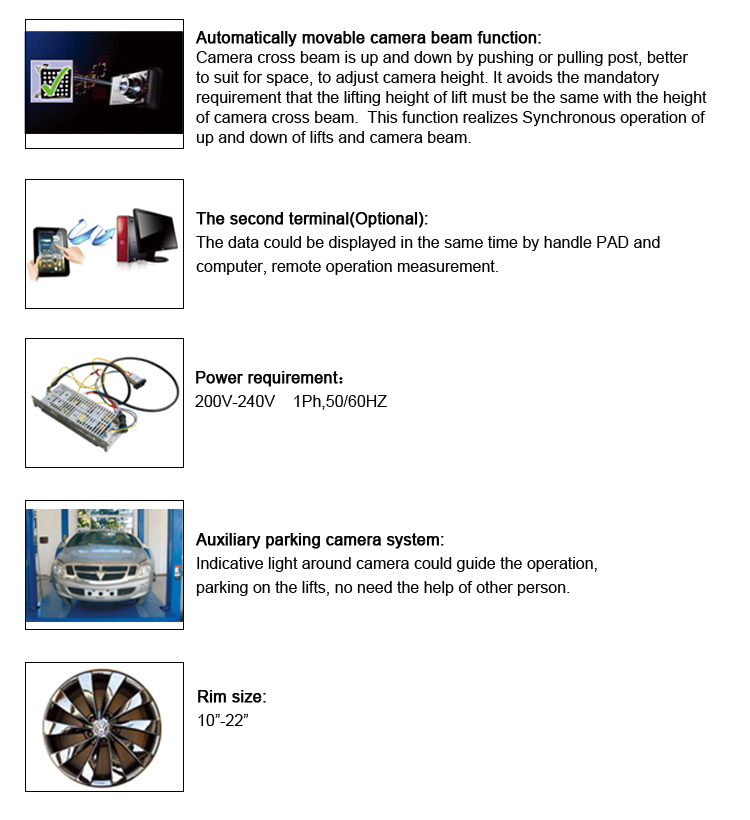

Function:
1.Automatically Movable Camera Beam Function:
Camera cross beam is up and down by pushing or pulling post , better to suit for space ,
to adjust camera height . It avoids the mandatory requirement that the lifting height of lift
must be the same with the height of camera cross beam.This function realizes synchronous
operation of up and down of lifts and camera beam.
2.Auxiliary parking camera system:
indicative light around camera could guide the operation, parking on the lifts, no need the
help of other person.
3.The second terminal(Optional):
the data could be displayed in the same time by handle PAD and computer , remote
operation measurement

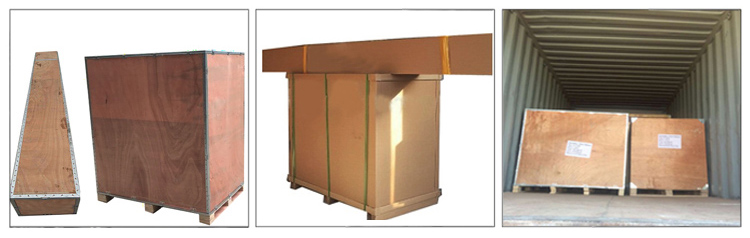

Packing of the Wheel Alignment Machine Price S-TV3D-HL :
1Set/Carton , With plywood carton. The packing dimension is as below
Catons 1 : 2.96x0.35x0.3m Catons 2 : 2.96x0.35x0.3m Carton 3 : 1.18x0.86x1.40m
N.W: 285kgs , G.W: 300kgs
Delivery Time : 2-20days according to the order quantity .
Shipment : Any mode of transportation , by sea , by air or by train
