Specifications:

Measurement item	Measuring range	Measurement accuracy
Front wheel total toe	±20°	±0.01°
Rear wheel total toe	±20°	±0.01°
Front wheel camber angle	±12°	±0.02°
Rear wheel camber angle	±12°	±0.02°
Back rake angle	±25°	±0.05°
Kingpin internal inclination angle	±25°	±0.05°
Retraction angle	±10°	±0.01°
Thrust angle	±10°	±0.01°





















































































Features :

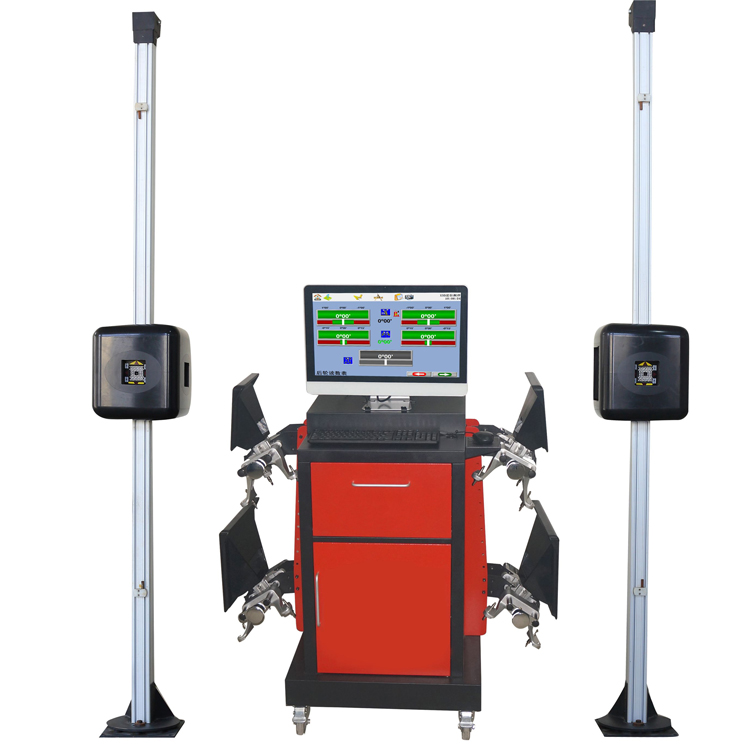

• Advanced software allows the camera to automatically track and adjust its height as the vehicle ascends and descends. The camera automatically captures the wheel target disk with high precision.
• High-resolution, multi-processor camera technology delivers accurate, vivid positioning readings and diagnostic data.

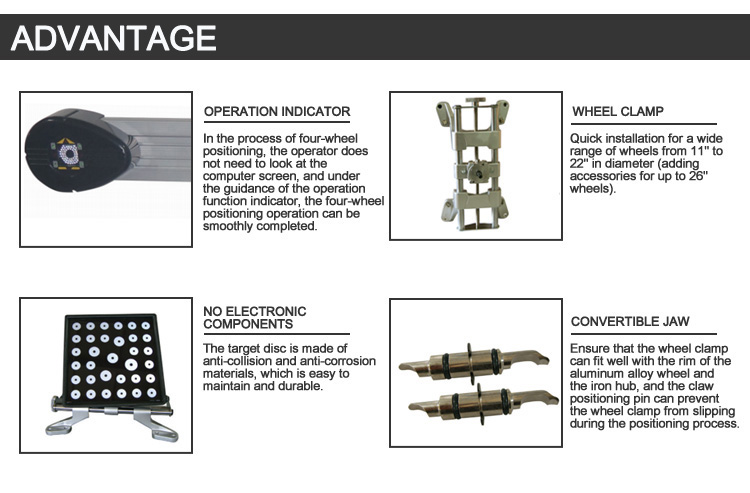

• Target disk - no electronic components, replacing traditional electronic sensors, eliminating equipment failures caused by circuits.
• Measurement process - When measuring, no need to compensate the steel ring, shortening the measurement time and improving the accuracy.
• Software System - Easy to operate, read basic four-wheel alignment data in two minutes.
• Maintenance - Maintenance is simple and easy, and the equipment does not need to be regularly calibrated.
• The vehicle data has the original vehicle data and information of more than 20,000 models in the past 30 years, enabling operators to quickly and accurately find the appropriate model.
