Product Details

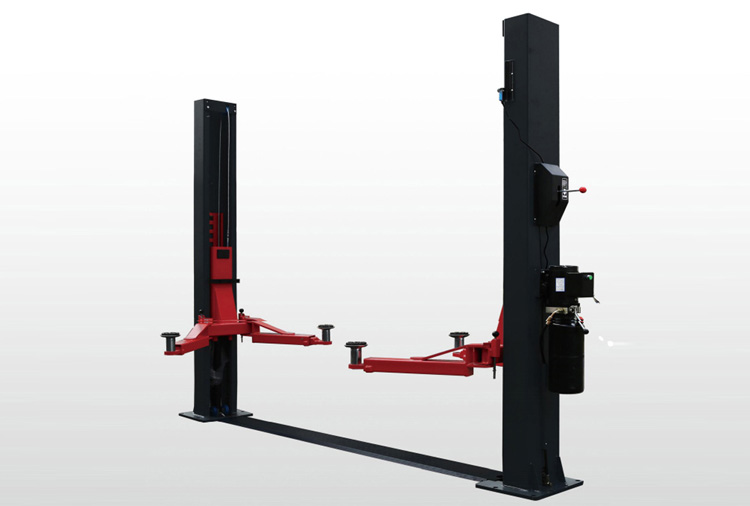

ST-U4000 Two Post Life Mechanical Single-point

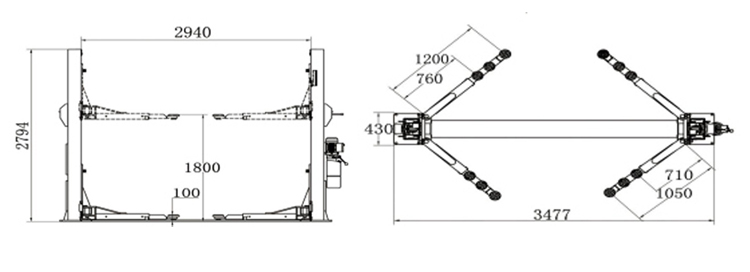

| ST-U4000 Two Post Life Mechanical Single-point | |
| Capicity | 4000kg |
| Lifting Height | 1800mm |
| Lifting time | 55S |
| Overall width | 3477mm |
| Inside column | 2940mm |
| Voltage | 380V/220V/110V |
| Motor power | 2.2KW |
| Rated oil pressure | 20Mpa |
| Noise | ≤80dB |
ST-U4000 Two Post Life Package
- machine package size 2.motor unit package size
length -----------2860mm length ---------820mm
width -----------450mm width -------- 310mm
height-----------700mm height -------250mm
weight ---------502kg weight -----22kg
Total Weight : 524kg

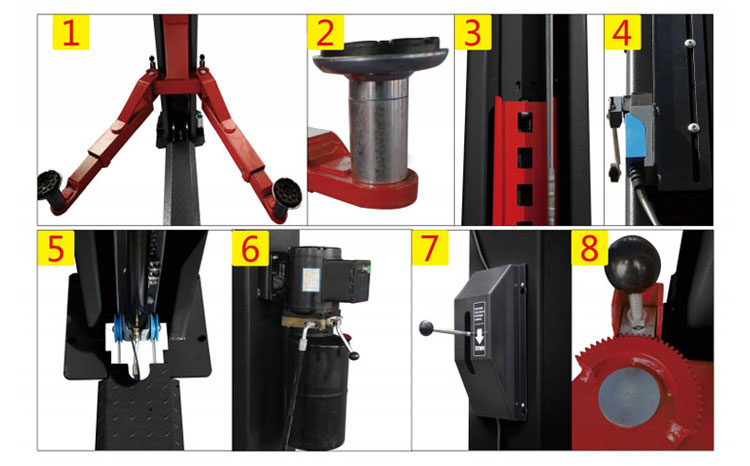

Post Lift Product Description
Point&2 Points manual lovk release; electrical lock release
Floorplate & Overhead
Toe protector included
Aluminium motor for stable performance, better heat radiation
8 fold profile column for strengthen lifting capacity
