Double cylinder drive, chain, sprocket drive, smooth lifting. A full-length protective cover is installed at the front end of the column to protect the safety of vehicle maintenance personnel.

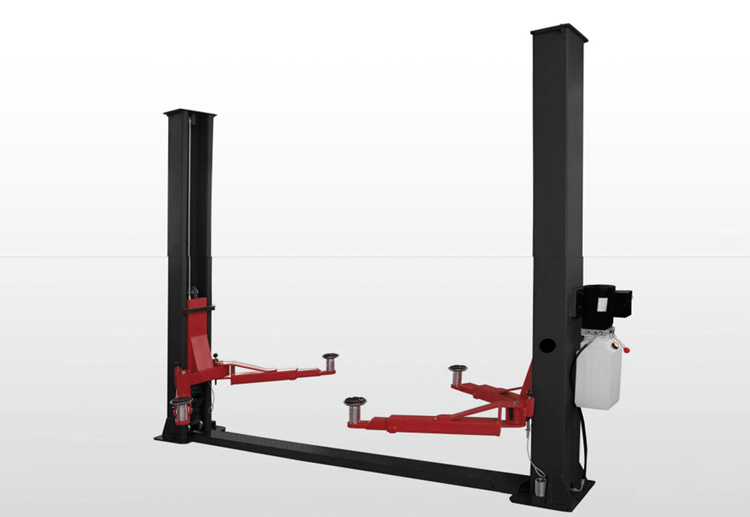

2 Post Car Lift
Product Details

ST-B4000 Two Post Life Technical Parameter

ST-B4000 Two Post Life Technical Parameter

ST-B4000 Two Post Life Technical Parameter
Capicity 4000kg
Lifting Height 1800mm
Lifting time 55S

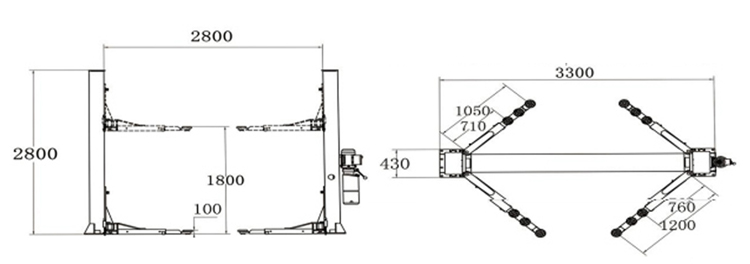

Overall width 3300mm
Inside column 2800mm
Voltage 380V/220V/110V
Motor power 2.2KW
Rated oil pressure 20Mpa
Noise ≤80dB

ST-B4000 Two Post Life Technical Parameter

ST-B4000 Two Post Life Package

  1. machine package size                            2.motor unit package size

length -----------2830mm                        length ---------820mm

width -----------450mm                            width -------- 310mm

height-----------700mm                           height -------250mm

weight ---------482kg                                weight -----22kg

Total Weight : 504kg

ST-B4000 Two Post Life Technical ParameterST-B4000 Two Post Life Technical Parameter ST-B4000 Two Post Life Technical Parameter

Post Lift Product Description
This machine is the largest domestic sales of a lift. With stable and reliable quality and reasonable price, it is an ideal lift for small and medium-sized repair factories.
Designed in accordance with international standards, the appearance is elegant. The verticality is good and the overall feeling is strong. Easy to install.
Designed according to international standards, in line with popular needs.
Double cylinder drive, chain, sprocket drive, smooth lifting.
A full-length protective cover is installed at the front end of the column to protect the safety of vehicle maintenance personnel.

ST-B4000 Two Post Life Technical Parameter
