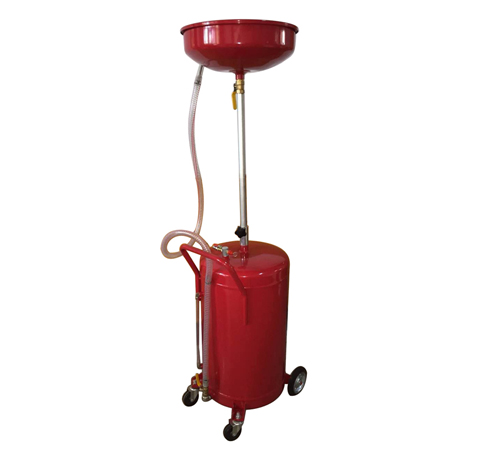

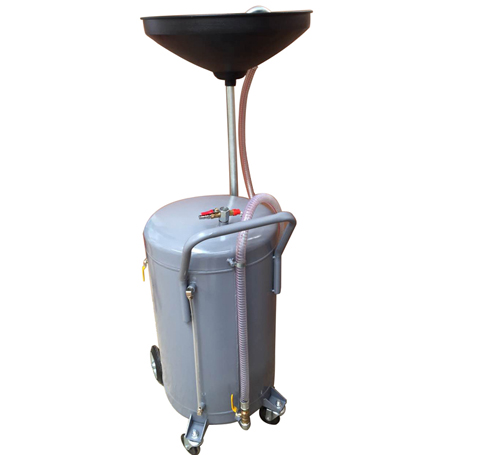

Oil Drain Collector Collect Oil Machine
Product Information :
Pneumatic waste oil drainer and oil extractor using high quality pneumatic components,sealing strong,big vacuum degree,large suction capacity,fast pumping speed.This machine is equipped with waste oil collection funnel. Behind the oil tank, It is the multi-purpose type, with or without lifting device or oil tubing , The oil tubing use of high transparency material , used for primary observation of oil and oil quantity measurement, all functions are powered by compressed air, make the operation more safety and protect environment .
| Product Name | Oil Drain Collector Collect Oil Machine |
| Part Number | S-OE |
| Material | 3mm thickness Steel |
| Color | Red , White or as request |
| Tank Capacity | 70L/80L/90L |
| Type | With Measuring Cups/Without Measuring Cups/
Adjustable/Non-adjustable |
| Oil Collection Funnel | 10L |
| Measuring Cups | 10L |
| Oil Temperature | 40-80degree |
| Vacuum degree | 0-0.08Mpa |
| Working Air Pressure | 8-10kg/cm |
| Pumping Speed | 0.8L-1.6L/min |
| Rated Pressure Of Safety Valve | 4kg/cm |
| Tubing Length | 1.5m |
| Max Height Of Oil | 1.6m |
| Pumping oil medium | Engine Oil |
| Feature: | 1.Good quality plastic or steel oil collection funnel 2.Air discharge drain with hose supplied 3.Reservoir oil level indicator tube 4.Power from air compressor, safe and easy operation |
Cautions of Pneumatic waste oil drainer and oil extractor:
1) Please conduct this working when the oil temperature is above 60 degree .
2) When collect the waste oil , please make sure the car is horizontal .
3) Please clean the basin termly with proper cleaner .
4) Don't adjust the release valve casually . It may cause danger .
Packing of pneumatic waste oil drainer and oil extractor :
1)Without measuring cups :1set/carton , packing dimension is 45x45x88cm , the
N.W/G.W is 17kgs/19kgs
2)With measuring cups :1set/carton , packing dimension is 43x50x89cm , the
N.W/G.W is 19kgs/20kgs
3)1x20CY: about 150sets
Delivery Time : 2-25days according to the order quantity .
Shipment : any mode of transportation , by sea, by air or by train .
